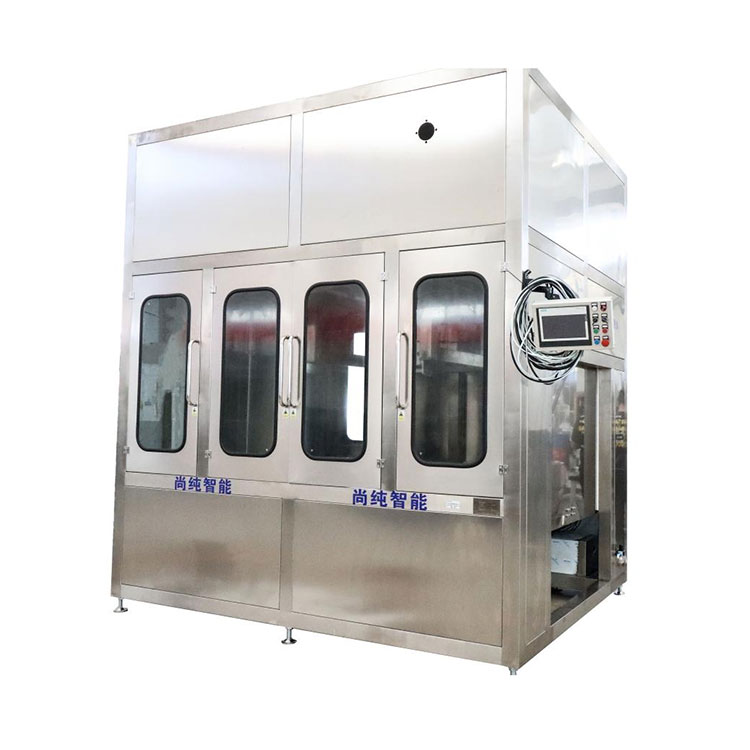

200L Barrel Fully Automatic Chemical Filling Machine

This machine is specially designed for 100-300kg resin liquid drum packaging and intelligent packaging system, the whole line automatically complete the bucket, automatic barrel opening, automatic cover, automatic diving filling, automatic cover, automatic out of the drum.

Send Inquiry

Product Description

Equipment Overview:

The touch screen is used to realize man-machine dialogue, with automatic diagnosis function, operation parameter setting and cumulative shift production, working status display, etc., with automatic tare, cumulative number of barrels, weight, random display of filling amount, automatic zero tracking, automatic correction of fall, over and under, abnormal operation alarm function, high anti-interference ability, reliable work. The system has the function of abnormal self-detection and fault warning. When the measurement is out of tolerance or failure occurs, the system can automatically alarm and close the charging system to avoid material overflow; With the function of the number of barrels and weight accumulation, the data is automatically accumulated after filling. Automatic and manual control operation can be switched, with the parameter memory function of products without specifications, select bucket parameters and filling amount on the touch screen, the operation is simple and intuitive. At the same time display the current time, running status, cumulative output and alarm machine fault display, prompt processing scheme and other functions.

The equipment has weighing and feedback system, which can set and adjust the filling amount.

Filling machine with the whole line interlock protection function, the missing bucket filling automatically stop, the bucket in place automatically resume filling.

Each part of the filling machine has fast maintenance, fast switching and fast installation.

Main technical parameters:

Filling station:	double station;
Filling speed:	60 barrels/hour (200L meter; According to the customer's material viscosity and incoming materials);
Filling accuracy:	±0.1%F.S;
Index value:	50g;
Filling range:	3-300Kg;
Applicable drum type:	200L steel drum, 200L plastic drum;
Material flow material:	304 stainless steel;
Main material:	304 stainless steel;
Sealing gasket material:	PTFE;
Material interface standard:	customer provided;
Gun diameter:	DN40; (Specific design according to the viscosity and characteristics of the material and the diameter of the barrel);
Instrument air interface standard:	The user provides G1/2 "manual ball valve with internal thread for quick connection;
Power supply:	AC380V/50Hz; 3.5 kW
Required air source:	0.6MPa;
Working environment temperature range:	-10℃ ~ +40℃;
Working environment relative humidity:	< 95%RH (no condensation);
