Product Description

Equipment overview

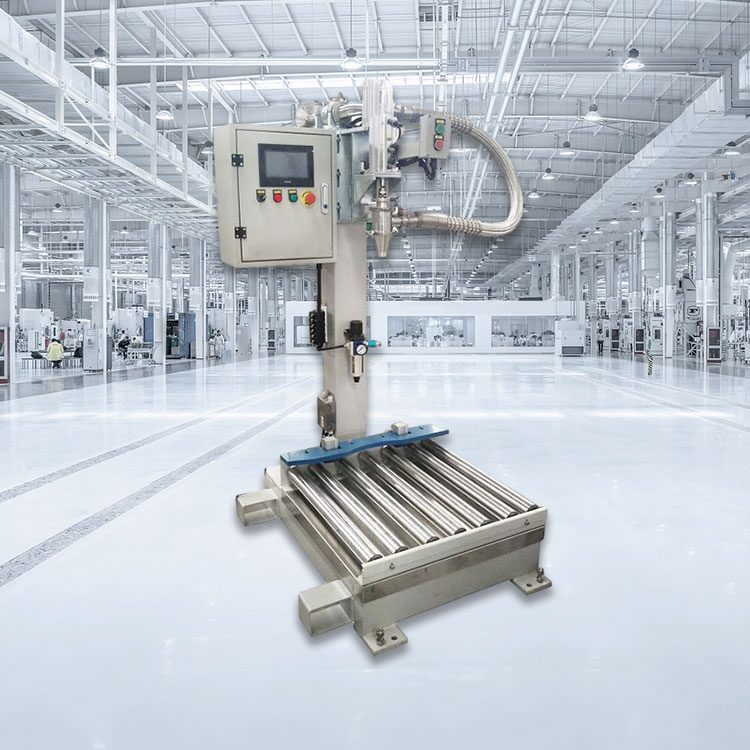

This 200L barrel semi-automatic chemical filling machine is specially designed for 100-300kg chemical liquid packaging and intelligent chemical liquid packaging system. The machine has the characteristics of easy operation, high production efficiency, wide application range and so on. It has stable production capacity, simple operation, high production capacity, and is the ideal equipment for large, Sinopec and intermediate enterprises.

The filling department of this machine realizes fast filling and slow filling through thick and thin double pipes, and the filling flow rate is adjustable. At the beginning of filling, both pipes are opened at the same time. After filling to the fast filling set amount, the thick pipe is closed, and the thin pipe continues to fill slowly until the set overall filling amount is reached. All valves and interfaces are sealed with polytetrafluoroethylene.

Main technical parameters:

Dimensions (L X W X H) mm:	900X1250X2000
Production capacity:	about 30-40 barrels/hour (200L meter; According to the customer's material viscosity and incoming materials)
Filling error:	±200g
Main material:	carbon steel spray
Sealing material:	PTFE
Power supply:	AC220V/50Hz; 0.5 kW
Required air source:	0.5 ~ 0.7MPa;
