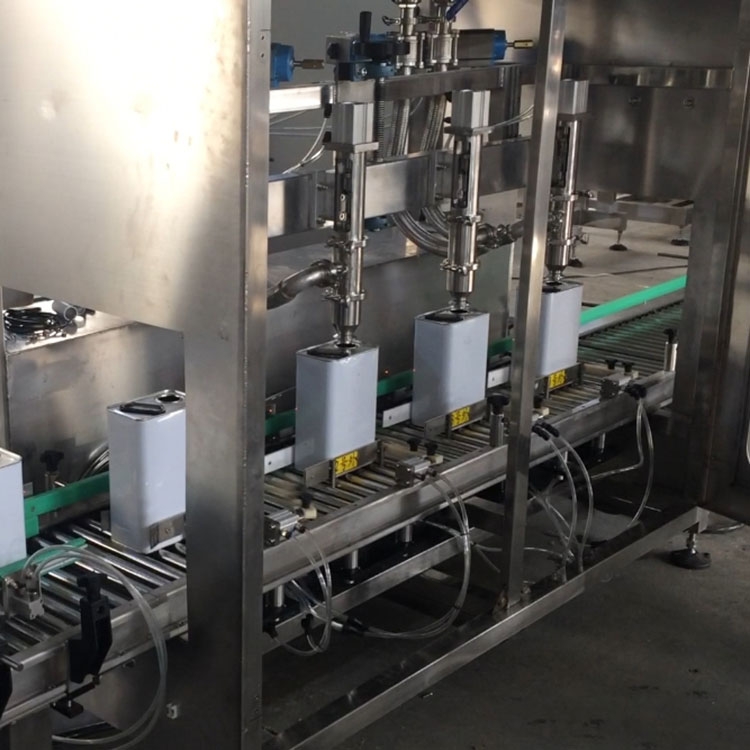

5L Barrel Fully Automatic Paint Filling Machine

This machine is 1-5L specification square, round bucket weighing filling machine. Suitable for the packaging of paint liquid.

Send Inquiry

Product Description

Equipment Overview:

This machine is 1-5L specification square, round bucket weighing filling machine. Suitable for the packaging of paint liquid.

The machine adopts programmable controller (PLC) to control, easy to use and adjust.

The material contact material is made of 316L stainless steel;

The height of filling head can be adjusted;

The anti-drip device of the filling nozzle prevents the material from splashing, which can meet the filling requirements of materials with different characteristics.

Double head filling, each gun head filling material is different, filling one of the materials, the other gun head can not open the drip at the same time

The pipe connection of the whole machine adopts the quick assembly mode, the disassembly and cleaning are convenient and quick, the whole machine is safe, environmental protection, health, beautiful, and can adapt to different environments.

Main technical parameters:

Applicable bucket type:	1-5L bucket
Filling accuracy:	±0.1%F.S
Production capacity:	about 200-250 barrels/hour (5L meter; According to the customer's material viscosity and incoming materials)
Machine weight:	about 350kg
Power supply:	AC220V/50Hz; 1kW
Air source pressure:	0.6MPa
